Siemens Motor Extrusion Molding Machine MP 80FD for HDPE Output of 85KG/H

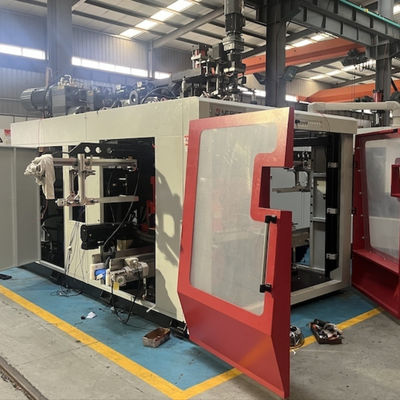

大画像 : Siemens Motor Extrusion Molding Machine MP 80FD for HDPE Output of 85KG/H

商品の詳細:

ブランド名:	MEPER
証明:	CE/ISO9001:2008
Model Number:	80FD

お支払配送条件:

Minimum Order Quantity:	1 Set
価格:	negotiable
Packaging Details:	Standard Packaging
Delivery Time:	25-35 Work Days
支払条件:	LC、T/T
Supply Ability:	100 Sets Per Month

詳細製品概要

タッチスクリーン:	シーメンス	該当する資料:	HDPE + EVOH+AD
コンテナ容量:	500ml	PLC:	三菱
クランプ力:	120KN	プレート・ストローク:	540m中
タイプ:	プラスチック加工機械	材料:	プラスチック
ハイライト:	Siemens HDPE extrusion molding machine , MP 80FD extrusion machine 85KG/H , high output extrusion molding machine

Siemens Motor Extrusion Molding Machine MP 80FD for HDPE Output of 85KG/H

Product Description

An Extrusion Blow Molding Machine shapes plastic materials into hollow products. The process begins by heating plastic resin (typically HDPE, LDPE, PP, or PVC) until melted. The molten plastic is extruded to form a hollow tube (parison), which is enclosed within a mould. Air is then blown into the parison, forcing it to expand and conform to the mould's interior. After cooling, the finished hollow product is ejected.

Key Features

Accommodates hollow products of various sizes (large, medium, small)
Compatible with multiple plastic types for versatile production
Produces thick-walled containers for robust, durable outputs
Single-layer and multi-layer production capability (up to 6+ layers)
High-durability construction for stable, continuous operation
Available in single-station or double-station configurations

Technical Parameters

80FDE-4S(100)
SPECIFICATION	MATERIAL	PE
MAX CONTAINER CAPACITY	L	500ML
NUMBER OF DIE	set	4
MACHINE DIMENSION(LxWxH)	M	3.82x4x2.5
TOTAL WEIGHT	ton	8.6
CLAMPING UNIT
CLAMPING FORCE	kN	120
PLATEN OPENING	mm	240-600
TOGGLE STROKE	mm	540
MAX MOULD SIZE (WxH)	mm	480x500
EXTRUDER UNIT
SCREW DIAMETER	mm	75
SCREW L/D RATIO	L/D	24
PLASTICIZING CAPACI(HDPE)	Kg/h	85
SCREW HEATING ZONE	zone	3
SCREW HEATING POWER	kW	15.3
FAN POWER	kW	0.14
EXTRUDER MOTOR POWER	kW	22
DIE HEAD
DIE HEAD HEATING ZONE	zone	15
POWER OF DIE HEAD HEATING	kW	16.5
MAX DIAMETER OF MOUTH MOLD	mm	35
ENERGY-CONSUMPTION
TOTAL POWER OF MACHINE	kW	72
POWER OF OIL PUMP MOTO	kW	15
AIR PRESSURE	Mpa	0.6-0.8
CONSUMPTION COMPRESSION AIR	m3/min	1.5
CONSUMPTION COOLING WATER	m3/min	0.4

Applications

This extrusion blow molding machine is ideal for producing:

HDPE bottles for detergents, shampoos, and yogurt packaging
Containers for motor oil, lubricants, chemicals, and pesticides
Large jerry cans (5-30 liters capacity)
Water tanks and fuel tanks
Hollow plastic articles like toys, balls, floats, and cones

Frequently Asked Questions

Q1: What is the brand and model number of this extrusion molding machine?

A1: The extrusion molding machine is from the brand MEPER, and the model number is 80FD.

Q2: Does this machine have any certifications?

A2: Yes, the MEPER 80FD extrusion molding machine is certified with CE and ISO9001:2008 standards.

Q3: What is the minimum order quantity for this product?

A3: The minimum order quantity for the MEPER 80FD extrusion molding machine is 1 set.

Q4: What are the payment terms available for purchasing this machine?

A4: Payment terms accepted are L/C (Letter of Credit) and T/T (Telegraphic Transfer).

Q5: How long does it take to deliver the extrusion molding machine after placing an order?

A5: The delivery time for the MEPER 80FD extrusion molding machine is typically 25-35 work days.

Q6: What packaging is used for shipping this machine?

A6: The machine is shipped using standard packaging to ensure it arrives safely.

Q7: What is the supply capacity of the manufacturer for this extrusion molding machine?

A7: The manufacturer can supply up to 100 sets of the MEPER 80FD extrusion molding machine per month.

Q8: Is the price fixed or negotiable?

A8: The price for the MEPER 80FD extrusion molding machine is negotiable depending on order quantity and requirements.
