| キーワード: | hdpeボトル吹き機 | クランプ力: | 120KN |
|---|---|---|---|
| 層: | 4 | タイプ: | プラスチック加工機械 |
| コンテナ容量: | 500ml | 材料: | プラスチック |
| プレート・ストローク: | 540m中 | 該当する資料: | HDPE + EVOH+AD |
| ハイライト: | HDPE extrusion molding machine,EVOH extrusion molding machine,single head extrusion machine |
||

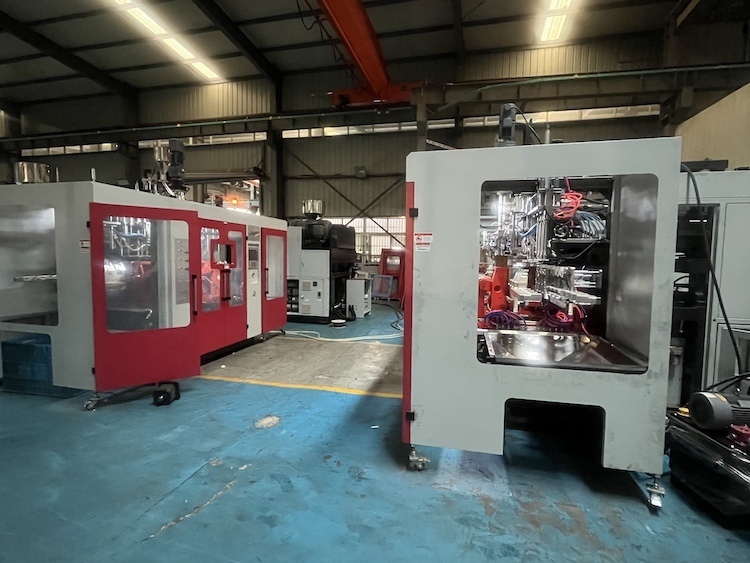

An Extrusion Blow Molding Machine is specialized equipment designed for shaping plastic materials. The process begins by melting plastic resins including High-Density Polyethylene (HDPE), Low-Density Polyethylene (LDPE), Polypropylene (PP), or Polyvinyl Chloride (PVC).
The machine extrudes the molten plastic into a hollow tube (parison), which is then enclosed by a mold. Compressed air is blown into the parison, causing the plastic to expand and conform to the mold cavity. After cooling and solidification, the finished hollow plastic product is ejected for further processing or use.
| 80FDE-4S(100) | ||
|---|---|---|
| SPECIFICATION | MATERIAL | PE |
| MAX CONTAINER CAPACITY | L | 500ML |
| NUMBER OF DIE | set | 4 |
| MACHINE DIMENSION(LxWxH) | M | 3.82x4x2.5 |
| TOTAL WEIGHT | ton | 8.6 |
| CLAMPING UNIT | ||
| CLAMPING FORCE | kN | 120 |
| PLATEN OPENING | mm | 240-600 |
| TOGGLE STROKE | mm | 540 |
| MAX MOULD SIZE (WxH) | mm | 480x500 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | mm | 75 |
| SCREW L/D RATIO | L/D | 24 |
| PLASTICIZING CAPACI(HDPE) | Kg/h | 85 |
| SCREW HEATING ZONE | zone | 3 |
| SCREW HEATING POWER | kW | 15.3 |
| FAN POWER | kW | 0.14 |
| EXTRUDER MOTOR POWER | kW | 22 |
| DIE HEAD | ||
| DIE HEAD HEATING ZONE | zone | 15 |
| POWER OF DIE HEAD HEATING | kW | 16.5 |
| MAX DIAMETER OF MOUTH MOLD | mm | 35 |
| ENERGY-CONSUMPTION | ||
| TOTAL POWER OF MACHINE | kW | 72 |
| POWER OF OIL PUMP MOTO | kW | 15 |
| AIR PRESSURE | Mpa | 0.6-0.8 |
| CONSUMPTION COMPRESSION AIR | m3/min | 1.5 |
| CONSUMPTION COOLING WATER | m3/min | 0.4 |
Extrusion blow molding is widely used for manufacturing various plastic containers including:
